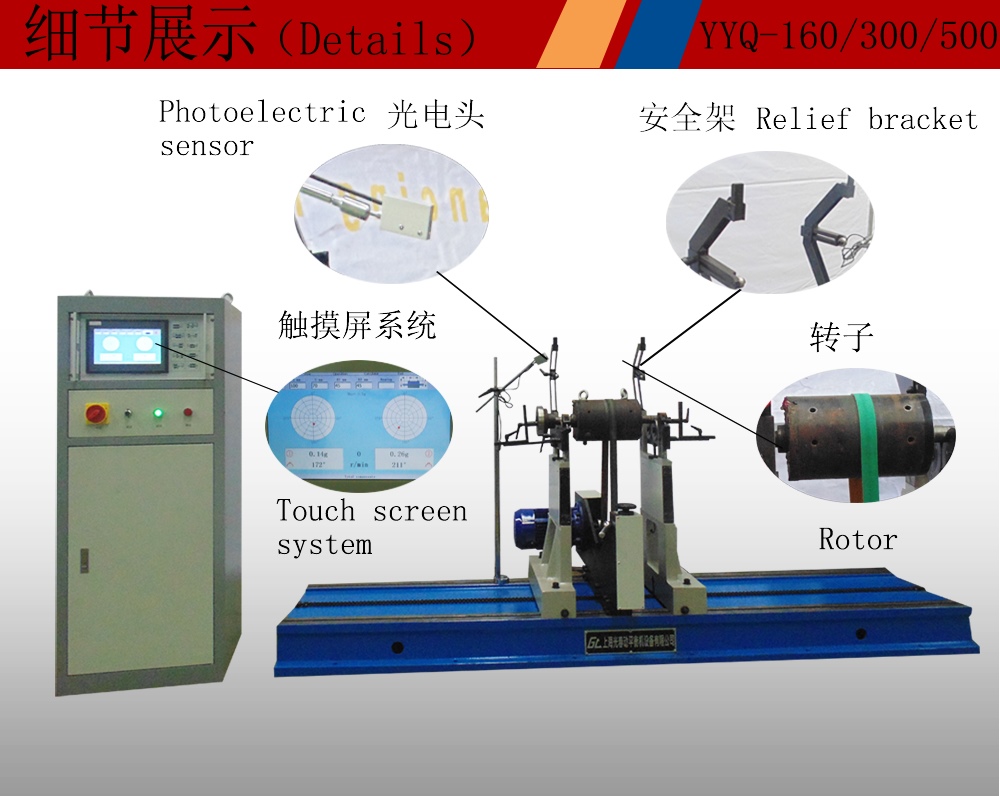

160/300/500KG Belt Drive Dynamic Balancing Machine
DESCRIBE
Product feature：
- Specially designed brackets transmit mechanical force with low vibration damping.
- Durable and reliable sensor possesses good linearity.
- Permanent calibration brings high accuracy with a permission of large initial unbalance amount.
- Belt-driving offers higher precision and easier operation.
- Advanced electrical measuring system and friendly man-machine interface.
- Modular design offers a wide range of application.
The range of application：

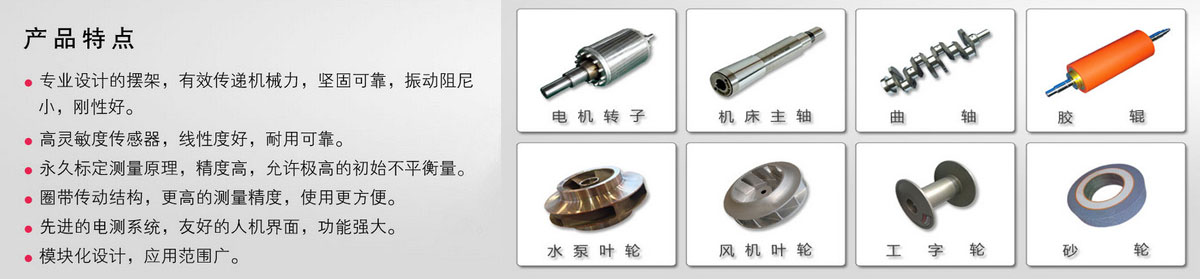

YYQ series are applicable for balancing rotating parts of motor, fan impeller, pump impeller, turbocharger, crankshaft, centrifuge, roller, spindle etc.
PARAMETER
|
Technical Parameters |
YYQ-160 |
YYQ-300 |
YYQ-500 |
|
Maximum weight of workpiece(kg) |
160 |
300 |
500 |
|
Maximum diameter of workpiece(mm) |
1000 |
1200 |
1500 |
|
The distance between two bearing pedestals(mm) |
125-1280 |
||
|
Journal diameter on roller arriages(mm) |
10-75 or 75-140 |
15-75 or 75-180 |
|
|
Belt driving diameter (mm) |
400 |
500 |
600 |
|
Rotation speed when the diameter of operating trabsmission is 100mm(r/min) |
Variable frequency stepless speed regulation |
||
|
Motor Power(kw) |
1.5 |
2.2 |
|
|
Minimum achievable Rsidual(emar) |
≤0.5g.mm/kg |
||
|
Unbalance reduction ratio(%) |
≥90% |
||
